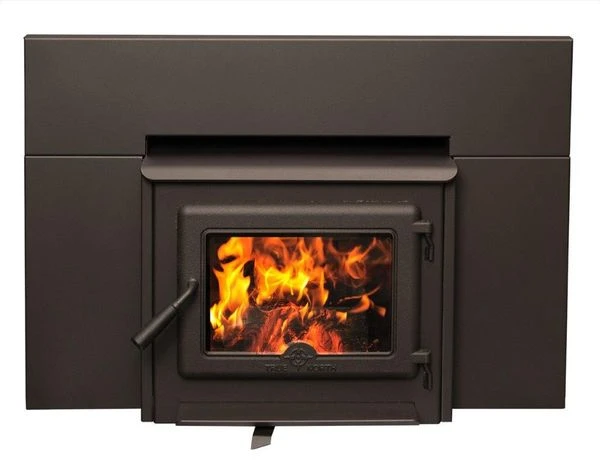

Name: True North TN20 B Series Wood Burning Fireplace Insert
SKU: TN20-INSB
Availability: InStock

Free Venting Design & Quote:

Manufacturer: True North
Part Number: TN20-INSB
eFireplaceStore Item Number: TNS-TN20-INSB

Features

Ceramic glass door
Rolled cast iron door frame
Includes 80CFM rotary blower
Oversize faceplate options
Refractory brick lined firebox
Exceeds EPA 2020 emissions requirements
Features up to five hours of burn time
Installs into existing fireplace openings
Surround Dimensions: 38″ W x 27″ H

Technical Specifications

Recommended Heating Area: 550-1,800 Square Feet
Firebox Volume: 2.0 Cubic Feet
Maximum Log Length: 20″
Flue Size: 6″
Steel Top Thickness: 10 guage
Steel Body Thickness: 10 guage
Overall Dimensions: 21 5/8″ W x 20 1/8″ H x 28 7/8″ D
Window Viewing Area: 12 1/2″ W x 8 1/2′ H
Required Fireplace Minimum Width: 29″
Required Fireplace Minimum Height: 20 1/4″
Required Fireplace Minimum Depth: 18″
Hourly Emissions: 1.6 Grams
Max BTU Output: 55,000 BTU/h
73% efficient based on an EPA-specified test method (CSA B 415-10 stack loss method). Actual efficiency will vary.

*Venting Requirements: This unit requires venting pipe with an inner diameter of 6 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

If you are looking for a fireplace insert then look no further. The True North TN20 B Series Wood Burning Insert is a great addition to your masonry fireplace opening. This insert comes with high quality gasket cast iron door, standard surround, and an entry-level tube combustion system. With the reliable and durable catalytic-free technology this fireplace insert will be enjoyed for years to come. So when you think of reliability think of True North, a Pacific Energy brand of stoves.
