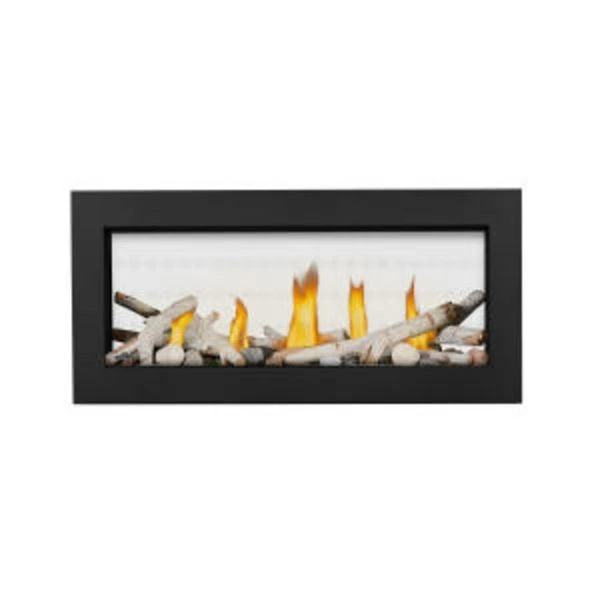

Name: Napoleon 38' See-Thru Vector Series Direct Vent Gas Fireplace - Electronic Ignition
SKU: LV38N2-1
Availability: InStock

Free Venting Design & Quote:

Manufacturer: Napoleon
Part Number: LV38N2-1
eFireplaceStore Item Number: NPL-LV38N2-1
UPC: 629169064069

Features

Color: Black(LV38N2-1)
Product Dimensions: 57 5/16″ W x 41 3/16″ H x 17 3/16″ D(LV38N2-1)
Fueled by natural gas
Limited lifetime warranty
CSA certified in the U.S. and Canada
Installed with a flush or recessed finish

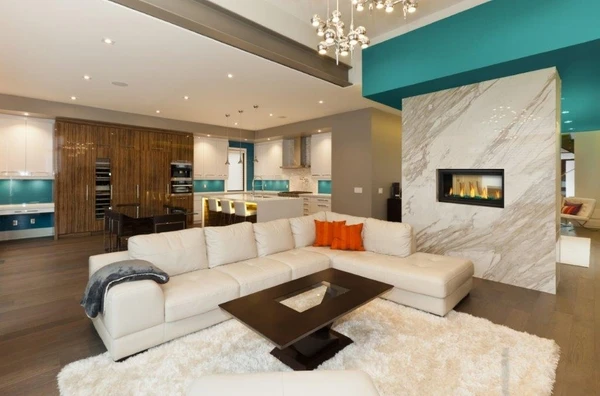

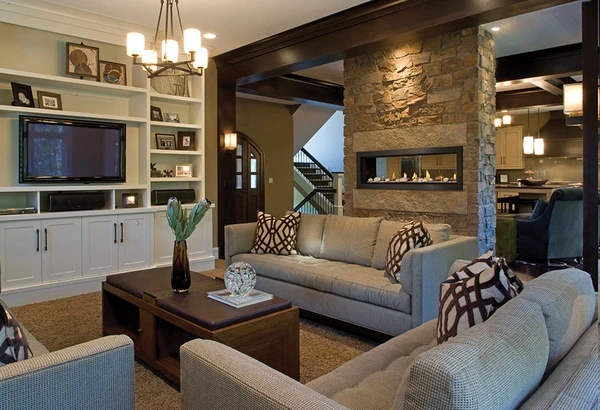

Double sided for between-room viewing
Electronic ignition with battery back-up
Direct-venting for maximum heating efficiency
Night light system adds a gentle glow to the room
Comes with black premium clean face safety barrier
Mirro-flame porcelain reflective radiant panels installed
Divinity flame pattern provides heightened peaks and valleys
Approved for bathroom, bedroom, and mobile home installations
Easy access air control for fast and precise air shutter adjustments
Pictured with optional, separately-purchased classic black surround
Includes ember bed featuring multi-colored LED lights that accent from underneath
Equipped with a wall switch, remote control, and eFIRE Bluetooth app for optimal convenience
Optional dynamic heat control system for installation of combustible materials up to the fireplace opening

Technical Specifications

Maximum BTU Output: 30,000
Min/Max Natural Inlet Pressure: 4.5″/7″ WC
Min/Max Propane Inlet Pressure: 4.5″/13″ WC
Framing Dimensions: 53 13/16″ W x 39 15/16″ H x 20 1/8″ D
Venting Dimensions: 5″ ID
Approved Direct Vent Systems: Metal-Fab SureSeal, Simpson DuraVent Direct Vent Pro, BDM Pro-Form, Selkirk Direct Temp, Olympia Chimney and Venting Ventis
Actual Viewing Area: 40 3/4″ W x 18 5/8″ H
Valve Type: IPI (Intermittent Pilot)

*Venting Requirements: This unit requires venting pipe with an inner diameter of 5 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
* Please Note: This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing alternate constructions, such as a chimney as part of the vent system, is not permitted.

*Also Note: The rating plate must remain with the appliance at all times. It must not be removed.

Enjoy your new Vector Fireplace from two rooms with this Napoleon 38″ See-Thru Vector Series Direct Vent Gas Fireplace. With electronic ignition you’ve got the ease of lighting this fire with a wall switch, a remote control, or the eFIRE Bluetooth app, and a battery back up allowing you to have a fire even in power outages. With a night light system, you can add a gentle glow to your living space, and an ember bed featuring multi-colored LED lights accent from underneath any fire. Mirro-flame porcelain reflective panels are already installed to best reflect the divinity flame patterns beauty. With a BTU output of 30,000 BTUs, this direct vent fireplace is approved for bathroom, bedroom, and mobile home installations and is CSA certified for the USA and Canada.
