Name: Kingsman Zero Clearance Clean View Direct Vent Linear Millivolt Gas Fireplace - 36 Inch - ZCVRB3622
SKU: ZCVRB3622N
Availability: InStock

Free Venting Design & Quote:

Manufacturer: Kingsman
Part Numbers: ZCVRB3622LP, ZCVRB3622N
eFireplaceStore Item Number: KGM-ZCVRB3622N

Features

Color: Black(ZCVRB3622LP, ZCVRB3622N)
Product Dimensions: 36″ W 37 1/8″ H and 17 7/16″ D(ZCVRB3622LP, ZCVRB3622N)
Direct vent gas fireplace
Choose between natural and propane gas
Tempered glass front with smooth face perimeter
Utilizes a highly reflective bed of bronze fire glass
Fireplace heater rated for use as a supplemental heat source
Able to be equipped with a full line of remotes and wall switches
Low profile fireplace frame allows for a clean looking installation
Includes safety barrier screen to prevent accidental contact with hot glass
Reliable standing pilot valve system ensures ready operation during power outages

Technical Specifications

Maximum BTU Output: 17,500
Min/Max Natural Gas Inlet Pressure: 5.5″/9″ WC
Min/Max Propane Inlet Pressure: 11″/12″ WC
Framing Dimensions: 36 3/8″ W x 37 1/4″ H x 17 1/2″ D
Venting Dimensions: 4″ ID
Approved Direct Vent Systems: Kingsman flex (Z-Flex) venting kit, M & G-Duravent, Direct Vent system (Duravent Pro), BDM Pro Form Direct Vent, Ameri-Vent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp
Actual Viewing Area: 29 3/4″ W x 16 1/8″ H
Valve Type: Millivolt (Standing Pilot)

*Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

Prop 65 Warning WARNING: This product can expose you to chemicals including Carbon Monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

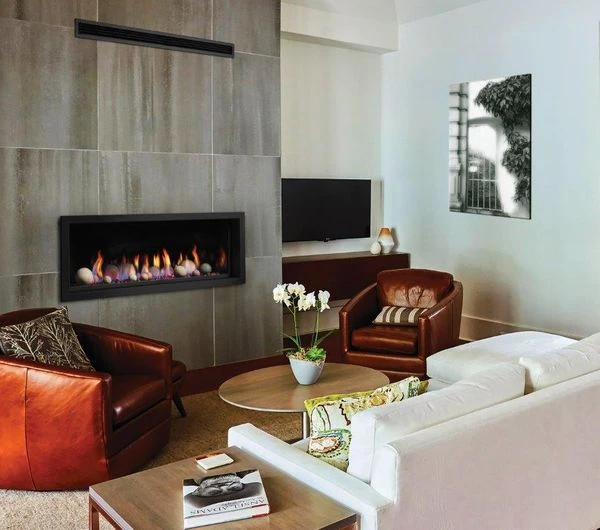

The 36-Inch Kingsman Zero Clearance Clean View Direct Vent Linear Millivolt Gas Fireplace is a beautiful contemporary fireplace heater that’s rated for use as a supplemental heat source. This fireplace utilizes a highly reflective bed of bronze fire glass and can pair with a full line of remotes and wall switches. This fireplace has a low profile frame and a tempered glass face with a smooth face perimeter, allowing for a clean and sleek installation. This fireplace also features the reliable standing pilot valve system, ensuring operation during power outages. Kingsman includes a safety barrier screen to prevent accidental contact with the hot glass. BTU Input Ratings: 17,500 Natural Gas / 17,500 Liquid Propane. Efficiency Rating: 62.5% Natural Gas / 63.9% Liquid Propane.
