Name: Kingsman Clean View Peninsula Direct Vent Millivolt Gas Fireplace - MCVP42H
SKU: MCVP42NH
Availability: InStock

Free Venting Design & Quote:

Manufacturer: Kingsman
Part Numbers: MCVP42LPH, MCVP42NH
eFireplaceStore Item Number: KGM-MCVP42NH

Features

Color: Black(MCVP42LPH, MCVP42NH)
Product Dimensions: 43 1/16″ W x 42 1/4″ H x 24 1/2″ D(MCVP42LPH, MCVP42NH)
Peninsula style
Tempered glass front
Direct vent gas fireplace
Choose between natural or propane gas
Able to be equipped with a full line of remotes and wall switches
Low profile fireplace frame allows for a clean looking installation
Peninsula (3 sided) design is ideal for use on wing and partition walls
Includes safety barrier screens to prevent accidental contact with hot glass
Able to utilize either a detailed 8 piece log set or contemporary glass media
Reliable standing pilot valve system ensures ready operation during power outages

Technical Specifications

Maximum BTU Output: 31,250
Min/Max Natural Gas Inlet Pressure: 5.5″/9″ WC
Min/Max Propane Inlet Pressure: 11″/12″ WC
Framing Dimensions: 42 1/2″ W x 42 3/8″ H x 23 5/16″ D
Venting Dimensions: 5″ ID
Approved Direct Vent Systems: Kingsman flex (Z-Flex) venting kit, 5 x 8 M&G-Duravent Direct Vent system (Model DV-GS Series), BDM Pro Form Direct Vent, Ameri-Vent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp
Actual Viewing Area: 33 11/16″ W x 20 5/8″ H
Valve Type: Millivolt (Standing Pilot)

*Venting Requirements: This unit requires venting pipe with an inner diameter of 5 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

Prop 65 Warning WARNING: This product can expose you to chemicals including Carbon Monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

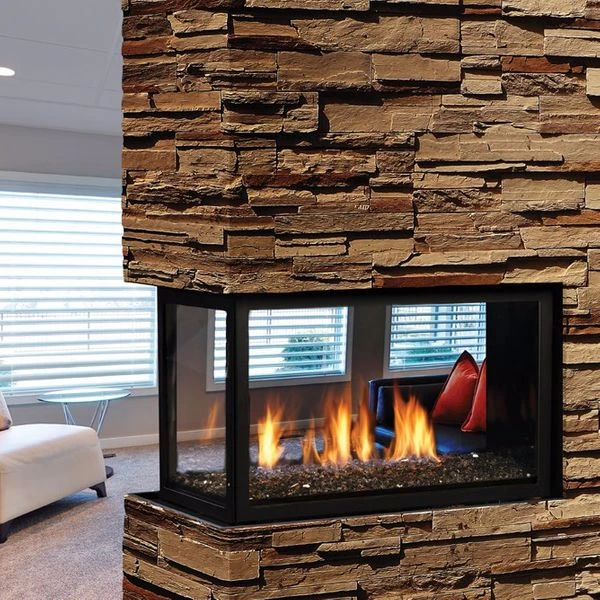

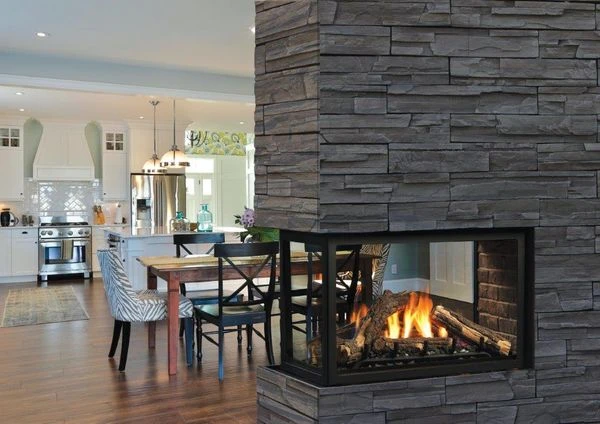

This 3-Sided Kingsman Clean View Peninsula Direct Vent Millivolt Gas Fireplace, rated for use as a supplemental heater, is ideal for use on wing and partition walls. This fireplace is a direct venting fireplace, utilizing either a detailed 8-piece log set or contemporary glass media. This MCVP42H Fireplace comes equipped with a reliable standing pilot valve system, allowing operation in power outages, and with the millivolt valve, this fireplace pairs with a full line of wall switches or remote controls. This low profile fireplace frame allows a cleaner looking installation, and Kingsman includes safety barrier screens to prevent accidental contact with hot surfaces. BTU Input Ratings: 31,250 Natural Gas / 29,000 Liquid Propane. Efficiency Rating: 64.8% Natural Gas / 66.3% Liquid Propane. Front openings dimensions: 33 11/16″ Wide, 20 5/8″ High. End opening dimensions: 16″ Wide, 20 5/8″ High.
