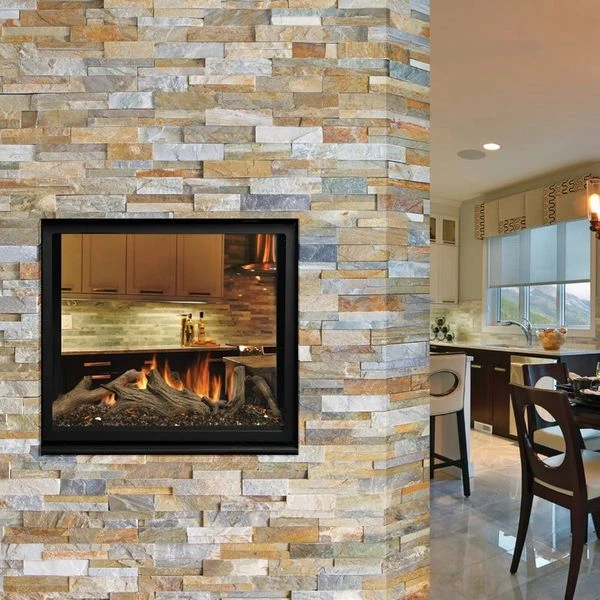

Name: Kingsman Clean View Direct Vent See Through Gas Fireplace Heater - Millivolt - MCVST42H
SKU: MCVST42NH
Availability: InStock

Free Venting Design & Quote:

Manufacturer: Kingsman
Part Numbers: MCVST42LPH, MCVST42NH
eFireplaceStore Item Number: KGM-MCVST42NH

Features

Color: Black(MCVST42LPH, MCVST42NH)
Product Dimensions: 43 1/16″ W x 51 1/4″ H x 24 1/4″ D(MCVST42LPH, MCVST42NH)
See-through style
Tempered glass front
Direct vent gas fireplace
Choose between natural or propane gas
Able to be equipped with a full line of remotes and wall switches
Low profile fireplace frame allows for a clean looking installation
Includes safety barrier screens to prevent accidental contact with hot glass
Able to utilize either a detailed 8 piece log set or contemporary glass media
Reliable standing pilot valve system operates readily during power outages
Double sided chassis is ideal for installation into both structural and partition walls

Technical Specifications

Maximum BTU Output: 31,250
Min/Max Natural Gas Inlet Pressure: 5.5″/9″ WC
Min/Max Propane Inlet Pressure: 11″/12″ WC
Framing Dimensions: 42 1/2″ W x 42 3/8″ H x 23 5/16″ D
Venting Dimensions: 5″ ID
Approved Direct Vent Systems: Kingsman flex (Z-Flex) venting kit, 5 x 8 M&G-Duravent Direct Vent system (Model DV-GS Series), BDM Pro Form Direct Vent, Ameri-Vent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp
Actual Viewing Area: 33 11/16″ W x 20 5/8″ H
Valve Type: Millivolt (Standing Pilot)

*Venting Requirements: This unit requires venting pipe with an inner diameter of 5 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

Prop 65 Warning WARNING: This product can expose you to chemicals including Carbon Monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

The Kingsman Clean View Direct Vent See-Through Gas Fireplace Heater, with its double-sided chassis, is ideal for installation into both structural and partition walls. This Direct Venting heater-rated fireplace utilizes either a detailed 8-piece log set or contemporary glass media, has a reliable standing pilot valve system, allowing operation even in power outages, and with the millivolt valve, pairs with a full line of remotes and wall switches. This MCVST42H Fireplace comes standard with Ceramic Glass and safety barrier screens to prevent accidental contact with the hot surfaces. The MCVST42H is ANSI/CSA listed for both the USA and Canada. BTU Input Ratings: 31,000 Natural Gas / 29,250 Liquid Propane. Efficiency Rating: 67.1% Natural Gas / 68.4% Liquid Propane.
