Name: Drolet Escape 1500-I Wood Burning Fireplace Insert Kit - 25 Feet
SKU: DB03137K
Availability: InStock

Free Venting Design & Quote:

Manufacturer: Drolet
Part Number: DB03137K
eFireplaceStore Item Number: DRO-DB03137K
UPC: 773388187365

Features

Color: Black
Size: 28 Inches
EPA certified appliance
Ceramic glass viewing door with cast iron frame
Includes one 29-inch wide x 44-inch long faceplate
Includes one Drolet Escape 1500-I wood-burning insert
Firebox lined with refractory bricks for better heat distribution
Includes blower, ash drawer, glass air wash system, and air damper
Includes one 25-foot long flexible stainless steel liner, connector, top plate, and chimney cap

Technical Specifications

Maximum BTU Output with Dry Cordwood: 65,000
Average Particulate Emissions Rate: 1.26 g/h
Recommended Heating Area: 500 to 1800 sq. ft.
Minimum Required Fireplace Opening Dimensions: 19 5/8″ W x 11 7/8″ H x 13 1/2″ D
Flue Size: 6″
Glass Viewing Area: 15 3/4″ W x 9 3/4″ H
Maximum Log Size: 18″
70% efficient based on an EPA-specified test method (CSA B 415-10 stack loss method). Actual efficiency will vary.

*Venting Requirements: This unit requires venting pipe with an inner diameter of 6 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

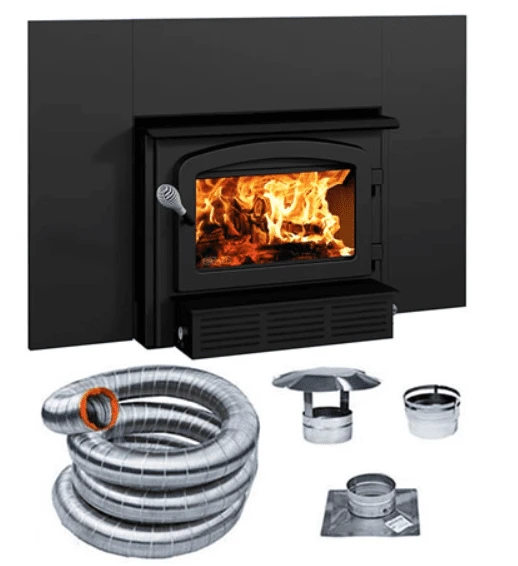

The Drolet Escape 1500-I Wood Burning Insert Kit packs everything you’ll need to install your wood-burning insert into a single convenient kit. The kit features a Drolet Escape 1500-I Wood Burning Insert that features a blower, ash drawer, air damper, and a ceramic glass viewing door that allows you to see the flames during operation. Alongside the insert, the kit also includes a stainless steel liner, connector, top plate, and chimney cap, as well as a long faceplate that provides both protection and style to the assembled kit.
